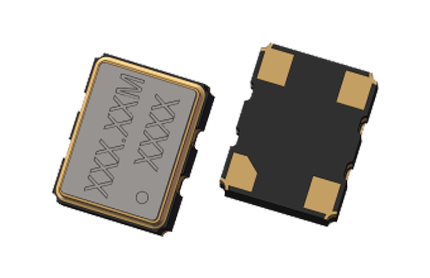

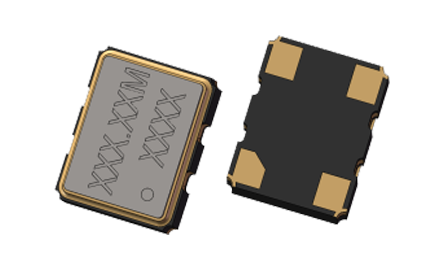

石英晶体谐振器CRYSTAL
| 型号 | 尺寸 | 输出频率 | 频率公差/频率精度 | 工作温度 |
|---|---|---|---|---|
|
X1*N
|
1.2×1.6×0.35mm3 |
24MHz~96MHz |
±25 ±35 ±75 |
-40℃~85℃ -40℃~105℃ -40℃~125℃ |
|
XX*N
|
2.0×1.6×0.5mm3 |
16MHz~96MHz |
±25 ±35 ±75 |
-40℃~85℃ -40℃~105℃ -40℃~125℃ |
|
X2*N
|
2.5×2.0×0.65mm3 |
12MHz~65MHz |
±25 ±35 ±75 |
-40℃~85℃ -40℃~105℃ -40℃~125℃ |
|
X3*N
|
3.2×2.5×0.75mm3 |
8MHz~65MHz |
±25 ±35 ±75 |
-40℃~85℃ -40℃~105℃ -40℃~125℃ |
|
X5*N
|
5.0×3.2×0.90mm3 |
8MHz~54MHz |
±25 ±35 ±75 |
-40℃~85℃ -40℃~105℃ -40℃~125℃ |
